Home > Low Frequency Power Inverter >

384VDC 40KW Low Frequency Power Inverter For Motors

Product Categories
SUG NEW ENERGY CO., LTD
Contact Now

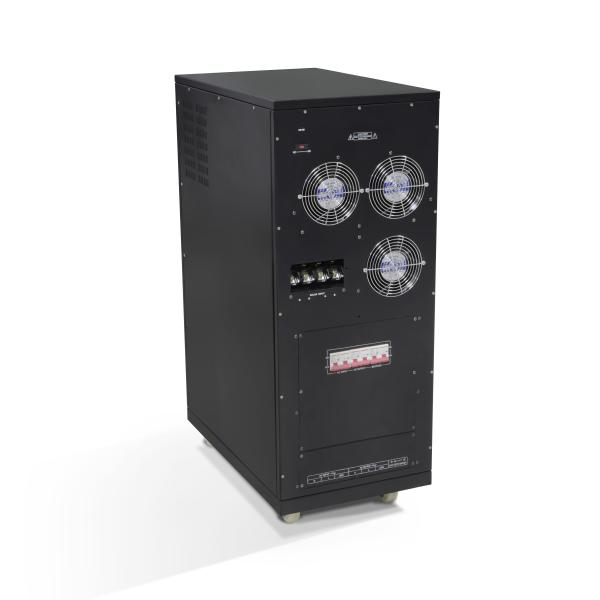

384VDC 40KW Low Frequency Power Inverter For Motors

Brand Name : SUG

Model Number : SGN-40KW

Certification : CE & ROHS & FCC & PSE

Place of Origin : China

MOQ : 1pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000pcs/month

Delivery Time : 15 working days

Packaging Details : Carton

Model : SGN-40KW

Rated power : 40KW

Surge power : 120KW

Input voltage : 384V

Output voltage : 110/120/220/230/240VAC

Output type : Single

Output frequency : 50Hz/60Hz

Warranty : 3 years warranty

Application : Home use,Industry,Motors

Display : LCD Display

Output waveform : Prue Sine Wave

Color : Black

Product size(cm) : 72*43.5*112

N.W./unit(kg) : 160

Meas(cm) : 79*50.5*126

G.W./ctn(kg) : 180

Contact Now

384VDC 40KW Low Frequency Power Inverter For Motors

Model: SGN-40kw

Rated power: 40kw

Peak power: 120kw

AC charging current: 15A

Capacity:

SGN Series: 350W-40KW

3 Working Modes:

*Grid Power First

*Battery First

*Energy Saving Mode

Intelligent LCD Real-Time Display:

384VDC 40KW Low Frequency Power Inverter For Motors

Product Specification:

Model SGN-350 SGN-500 SGN-700/24 SGN-700/12 SGN-1000/24 SGN-1500/48 SGN-2000/48 SGN-2000/24 SGN-3000/48 SGN-4000/96
Rated Power 350W 500W 700W 700W 1000W 1500W 2000W 2000W 3000W 4000W
Input Voltage 12V/24V 24V 12V 12V/24V 24V/48V 48V 24V 24V/48V 48V/96V
Solar Charge Controller 10A~30A(PWM) 10A~60A(PWM or MPPT)
Packing Size (L*W*Hmm) 385*270*185 460*200*270 460*240*380 490*300*400 530*310*550
Gross Weight (kg) 7.5 9 11 12 14 19 22 24 30 48
SGN SGN-5000/96 SGN-6000/96 SGN-7000/192 SGN-10K/192 SGN-12K/192 SGN-15K/240 SGN-20K/240 SGN-25K SGN-30K SGN-40K
Rated Power 5000W 6000W 7000W 10KW 12KW 15KW 20KW 25KW 30KW 40KW
Input Voltage 48V/96V 96V/192V 96V/192V 96V/192V 192V/240V 192V/240V 240V 240V 384V
Solar Charge Controller 10A~60A(PWM/MPPT) 50A/100A(PWM) 50A/100A/150A/200A(PWM)
Packing Size (L*W*Hmm) 530*310*550 550*365*785 665*365*830 790*505*1260
Gross Weight (kg) 58 59 72 77 115 121 130 136 150 180
General Technical
Input Input AC Voltage 73VAC~138VAC / 145VAC~275VAC(350W~7000W); 98VAC~125VAC / 195VAC~250VAC(8KW~40KW)
Ouput Ouput AC Voltage 110VAC±2% / 220VAC±2%( Battery Mode)
Output Wave Form Pure Sine Wave
Transfer Time ≤4ms
Efficiency ≥85%
Working Mode Battery First/AC First/Saving Energy Mode
AC Charging Current 15A Max 15A
Inside Solar controller
(Optional)		 Charging Mode PWM / MPPT
Charging Current 12V/24V/48V(system): 10A,20A,30A,40A,50A,60A; 96V/192V/240V/384V(system): 50A,100A,150A,200A
PV Input Voltage Range 12V(system):15V-44V;24V(system):30V-44V;48V(system):60V-88V; 96V(system):120V-176V; 192V(system):240V-352V; 240V(system):300V-440V; 384V(system):480V-704V
Communication RS232( optional)
Protection Over-load / Over-discharge / Short circuit / High temperayure / Over-voltage / Low-voltage

384VDC 40KW Low Frequency Power Inverter For Motors
